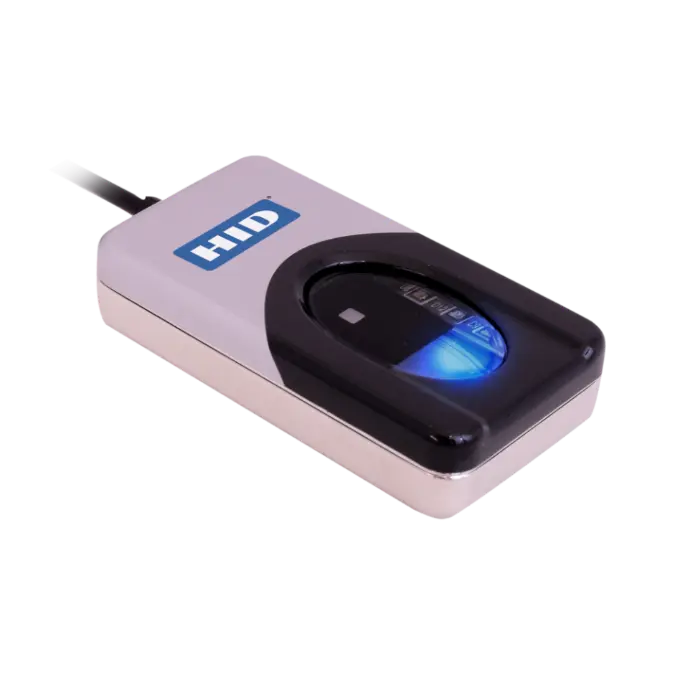

DigitalPersona®4500 Reader

DigitalPersona 4500 fingerprint reader is a USB peripheral perfect for individual desk top users As well as multiple users in shared environments.

OPTICAL USB FINGERPRINT READER

APPLICATIONS

  • Desktop PC security
  • Mobile PC security
  • Custom applications


The DigitalPersona 4500 fingerprint reader is a USB peripheral perfect for individual desk top users, as well as multiple users in shared environments. Its compact design conserves desk space in enterprises, and its professional, modern appearance looks elegant in point-ofsale environments. The DigitalPersona 4500 Reader utilizes optical fingerprint scanning technology to achieve excellent image quality, a large capture area and superior reliability. A silicone coating allows it to read a wide range of fingerprints accurately and rapidly regardless of placement angle. The high-quality metal casing resists unintentional movement.

To use, simply place a finger on the reader window and the reader quickly and automatically captures and encrypts the fingerprint image before sending it to the DigitalPersona® FingerJet™ biometric engine for verification. For superior user feedback, a red “flash” indicates that a fingerprint image has been captured. The DigitalPersona 4500 fingerprint reader is designed for use with a full range of software including our authentication solutions, as well as most of our DigitalPersona Biometric Software Development Kits. Whether you are an enterprise customer or a system integrator, DigitalPersona's biometric identity verification solutions provide a natural extension to your security system and applications.

FEATURES:

  • Blue LED
  • Small form factor
  • Excellent image quality
  • Superior ESD resistance
  • Encrypted fingerprint data
  • Latent print rejection
  • Counterfeit finger rejection
  • Rotation invariant
  • Rugged
  • Works well with dry, moist or


  • Compatible with DigitalPersona SDKs for Windows®, Linux® and Android®






SPECIFICATIONS


Product Name

Supply Voltage


Supply Current—scanning

Supply Current—idle mode


Supply Current—suspend mode

ESD Susceptibility


Temperature, Operating

Humidity, Storage


Scan Data

Encryption


Pixel Resolution

Standards Compliance


Weight

Standards Compliance



DigitalPersona® 4500 Reader

5.0V ±5% supplied by USB


< 100 mA (Typical)

120 mA (Typical)


< 0.5 mA (Maximum)
>15 kV, mounted in case







0 - 40 C

20% - 90% non-condensing







8-bit grayscale

Proprietary 32-bit polynomial encryption with rolling key







500 dpi

FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL







105 grams

USB 2.0 Full-speed High Power Device







Product Name

Supply Voltage


Supply Current—scanning

Supply Current—idle mode


Supply Current—suspend mode

ESD Susceptibility


Temperature, Operating

Humidity, Storage


Scan Data


Encryption


Pixel Resolution

Standards Compliance


Weight

Standards Compliance



DigitalPersona® 4500 Reader

5.0V ±5% supplied by USB


< 100 mA (Typical)

120 mA (Typical)


< 0.5 mA (Maximum)
>15 kV, mounted in case







0 - 40 C

20% - 90% non-condensing







8-bit grayscale

Proprietary 32-bit polynomial encryption with rolling key







500 dpi

FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL







105 grams

USB 2.0 Full-speed High Power Device
